NEW YORKER

Engineered for high rise projects.

Fast material delivery that is perfect for high reach, medium duty projects.
Delivers 600 lb loads at 80 feet per minute to a height of 350 feet.

NEW YORKER SPECS

Single Line Setup Only

  • 600 lb - Lifting Capacity
  • 80 fpm - Lifting Speed
  • 350 ft - Lifting Height
  • Controller Type: External Pendant
  • 1Φ 1.5 HP 200V - Power
  • 180 lb - Unit Weight

Mounting Setup Options

I Beam Trolley: I Beam Trolley is our most flexible and versatile mounting system.

  • Headroom: 31.00 in
  • Adjustable Flange Width: 2.66"-5.25"

I Beam Fixed: Beta Max offers a Fixed I-Beam Top which firmly holds the hoist stationery on the I-Beam.

  • Max. Load Lift: 2000 lb
  • Headroom: 31.00 in
  • Adjustable Flange Width: 2.66"-5.25"

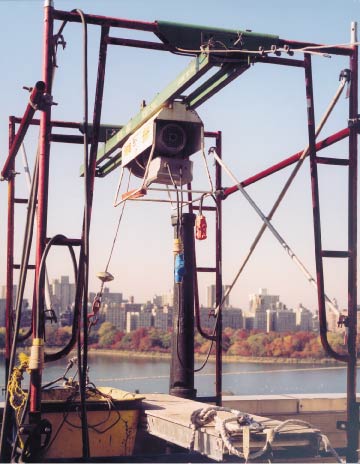

Scaff Trac: Our most popular mounting system attaches in minutes, with no tools, to existing scaffolding.

  • Max. Load Lift: 1200 lb
  • Headroom: 31.00 in
  • Outward Cantilever: 3.5 ft

Trestle Monorail: This mount is easily installed for between-the-floor or rooftop lifting. Proper counterbalancing required.

  • Max. Load Lift: 2000 lb
  • Headroom: 31.00 in
  • Outward Cantilever: 3.5 ft

Accessories

BLOCK FORK
  • Lift 8″ x 8″ x 16″ block.
  • Lifting Capacity: 800 lb​
  • Dimensions: 24.5″ x 24.5″ x 34.5″​
SCAFFOLD FRAME FORK
  • Holds up to 10 scaffold frames.
  • Lifting Capacity: 600 lb
  • Dimensions: 36.25″ x 15″ x 25″
BASKET
  • Equipment Baskets in Two Sizes.
  • Must be used with a spreader bar. Available in two sizes: Standard duty 400 lb capacity, 30″ x 20″ x 12″ basket and Heavy duty 800 lb capacity, 36″ x 36″ x 18″ basket.
  • Lifting Capacity: 400 lb or 800 lb
  • Dimensions: 30″ x 20″ x 12″ or 36″ x 36″ x 18″
BRICK FORK
  • Lift 100-pack of bricks.
  • Holds 2.5 x 3 x 8″ bricks. Designed to hold 100-pack of bricks.
  • Lifting Capacity: 400 lb
  • Dimensions: 29.25″ x 7.5″ x 3.75″
DUMPSTER BUCKETS
  • Designed for easy unloading.
  • Easy to empty, bucket swivels 360º and comes in three sizes: 24, 31 and 40 gallon capacities.
  • Lifting Volumes: 24 gallon, 31 gallon or 40 gallon.
  • Lifting Capacity: 1,000 lb (all sizes)
  • Design includes a latch for locking the bucket in upright position.
SPREADER BAR
  • High Capacity And Low Clearance.
  • Both Beta Max spreader bars are designed to provide maximum room for your payload.
  • Use with slings to carry piping or cross-braces. Sold with Beta Max mud tub and equipment basket.
  • Lifting Capacity: 400 lb or 800 lb
MUD TUB
  • Move mud where you need it, when you need it.
  • Lifting Capacity: 950 lb or 1,375 lb
  • Lifting Volume: 6 cu. feet or 9 cu. feet.
  • Dimensions: 42″ x 27″ x 18″ or 42″ x 27″ x 28″
WHEELBARROW SWINGS
  • Put your standard wheelbarrow to maximum use.
  • Lifting Capacity: 800 lb
DOUBLE ROPE KIT
  • Double Your Lifting Capacity in Less Than 90 Seconds
  • A rugged pulley and hook assembly for units with double rope capabilities.
I-BEAM SUSPENSION BRACKETS
  • Use an I-Beam setup with your scaffolding.
  • Number of Brackets: One – Sold Individually
  • Typically purchased in pairs for mounting an i-beam to existing scaffolding.
  • Depending on the length of the i-beam, additional suspension brackets may be needed.
COUNTERWEIGHT CLAMP SET
  • Properly counterbalance your scaffold or monorail setup.
  • Number of Clamps: One – Sold Individually
  • Typically purchased in pairs for equal weight counter-balancing. 50 lb staging weights not included.
PENDANT ASSEMBLY
  • Standard 6 foot pendant included with all non VFD hoists.
  • Control Type: Wired
  • Options: Single Discrete Speed (Up & Down Buttons)
REMOTE CONTROL EXTENSIONS
  • Extend your wired pendant control up to 125 feet from hoist.
  • Lengths: 25, 50, 85, 100, and 125 ft
  • Need control farther than 125 ft? Go wireless.
BOOSTER TRANSFORMERS
  • Boost the amperage of your power supply
  • Power: 110V or 220V
  • Connection: In-line
POWER CORD EXTENSIONS
  • Ensure proper power supply with 100 foot power cord extensions specific to your hoist.
  • Power: 110V or 220V
  • Length: 100 ft
  • Models: Specific to hoist voltage and amperage.
DUAL CONTROL PACKAGE
  • Maximize efficiency with dual pendant control
  • Power: 110V or 220V
WIRELESS DUAL CONTROL PACKAGE
  • Two wireless remotes provide control where you need it.
  • Remotes Included: 2
  • Operation Distance: Up to 1,000 feet with line of sight from remote to hoist.
